1m-6m PP Biaxial Geogrid Designed For Road Construction Project
| MOQ: | 1000m2 |
| Price: | 1.3-2.5$ |
| Standard Packaging: | Any requirement |
| Delivery Period: | 20Days |
| Payment Method: | T/T |
| Supply Capacity: | 100000000m2 |
Detail Information
Place of Origin
China
Brand Name
Shuntian
Certification
ISO9001
Model Number
ST01
Product Name:
Geogrid
Keywords:
PP Biaxial Geogrid
Mesh Size:
12.7*12.7mm. 25.4*25.4mm,35mm*35mm,
Width:
1m--6m,Special Requests
Length:
50-100m/roll
Structuretype:
Biaxial,
Material:
PP
Elongationatbreak:
5-15%
Highlight:
6m pp biaxial geogrid
,1m hdpe geogrid
,1m pp biaxial geogrid
Product Description

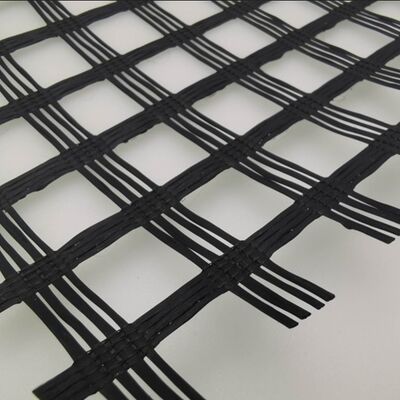

PP Biaxial Geogrid Designed For Road Construction Project
Plastic Geogrid
Geogrid is a high-strength polymer geosynthetic material, widely used in civil engineering projects. It features excellent tensile strength, corrosion resistance, and long-term durability, which can effectively reinforce soil, distribute loads, prevent soil erosion, and improve the stability of engineering structures. Suitable for road construction, slope protection, retaining walls, and landfill projects, geogrid plays a key role in reducing project costs and extending the service life of projects.
Fiberglass Geogrid Form
|
Item
|
Specification
|
Description
|
|---|---|---|
|
Material
|
PP (Polypropylene), PE (Polyethylene), PET (Polyester)
|
Food-grade raw materials, non-toxic and environmentally friendly
|
|
Type
|
Uniaxial Geogrid, Biaxial Geogrid
|
Uniaxial for one-way reinforcement; Biaxial for two-way reinforcement
|
|
Tensile Strength
|
Uniaxial: 20-150 kN/m;
Biaxial: 10-80 kN/m
|
Tested according to GB/T 17689-2014 standard
|
|
Elongation at Break
|
≤10% (at maximum tensile strength)
|
Low creep, stable performance under long-term load
|
|
Mesh Size
|
20×20mm, 30×30mm,
40×40mm, 50×50mm
|
Customizable according to project requirements
|
|
Thickness
|
1.5-5.0mm
|
Depends on material and strength grade
|
|
Width & Length
|
Width: 2-6m; Length: 50-100m/roll
|
Customizable roll size for easy transportation and construction
|
|
Service Life
|
≥50 years (under normal working conditions)
|
UV-resistant, corrosion-resistant to acid, alkali and salt
|
Performance Indicators
150g or 200g of geotextiles and 30 or 40 kN/m PP biaxial geogrid composite. Another: specific models of geogrid and geotextile can be customized as required. Geogrid with a width of 3.95m and 5.95m.
