Product Details:
Payment & Shipping Terms:
|
Features: | Non-toxic,odorless,tasteless,high Strength | Material: | 100% Polyamide (nylon) |
---|---|---|---|
Mesh Count: | 30/50/80/100/150/200/230/400 Micron | Usage: | Fisheries,chemical Industry,paint,ink Filter |
Color: | Main In White,other Color Can Custom-made | In Stock: | Yes |
Nylon Net, Filter Net, 25 um, 50 um, 100 um, 10-100 Mesh, 10-1000 Micron Diameter Size, Liquid Filtration
Prdouct details:
Popular mesh items and its detail usage:
150-200 mesh,is widely used in wine impurities filtration;
120-150 mesh,is commenly used for soybean milk filtration,fruit juice,homemade drinks filtering.
150-300 mesh,is used in paint filtering.
Features of the nylon mesh screen:
High Elongation,high strength,high toughness
Excellent alkali resistance
It has a working temperature of up to 200 degrees ℃.
Smooth filament, immersion resistance,no material drop off.
Nylon mesh have stable chemical & physical properties.
Application of the nylon mesh screen:
20 30 40 50 60 80 100 200 micron nylon filter mesh manufacturer are extensively used for filtration in avaition,airsapce petrochemical industries, and polyester filter screen (polyester filter mesh) with black color is specially used for dustproof on the electronic speakers such as mobile phone and other various speakers.
Technical data sheet:
Spec. | Mesh count |
Wire |
Mesh |
Opening rate | Thickness |
Weight |
GZ-JPP24 | 60 | 150 | 267 | 41 | 305 | 117 |
GZ-JPP28 | 70 | 150 | 207 | 34 | 278 | 87 |
GZ-JPP30 | 76 | 120 | 213 | 41 | 230 | 94 |
GZ-JPP32 | 80 | 100 | 213 | 46 | 240 | 69 |
GZ-JPP36 | 90 | 100 | 178 | 41 | 195 | 78 |
GZ-JPP40 | 100 | 100 | 150 | 36 | 192 | 87 |
GZ-JPP44 | 110 | 100 | 127 | 31 | 175 | 62 |
GZ-JPP48 | 120 | 80 | 128 | 38 | 150 | 65 |
GZ-JPP56 | 142 | 60 | 120 | 44 | 110 | 44 |
GZ-JPP59 | 150 | 60 | 110 | 42 | 98 | 46 |
GZ-JPP64 | 163 | 60 | 96 | 38 | 120 | 51 |
GZ-JPP72 | 183 | 50 | 89 | 41 | 90 | 38 |
GZ-JPP80 | 203 | 50 | 75 | 36 | 93 | 43 |
GZ-JPP88 | 224 | 40 | 74 | 42 | 65 | 32 |
GZ-JPP96 | 244 | 40 | 64 | 38 | 76 | 34 |
GZ-JPP100 | 254 | 40 | 60 | 36 | 78 | 35 |
GZ-JPP104 | 264 | 40 | 56 | 34 | 79 | 36 |
GZ-JPP120 | 305 | 40 | 43 | 27 | 80 | 42 |
GZ-JPP130 | 330 | 40 | 37 | 23 | 75 | 44 |

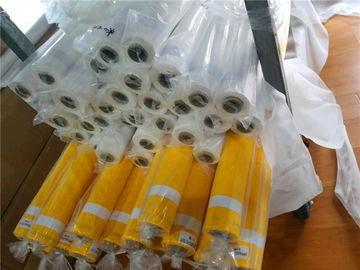

Product photo show:
Tag:Polyester wire mesh cloth; nylon mesh screen;
