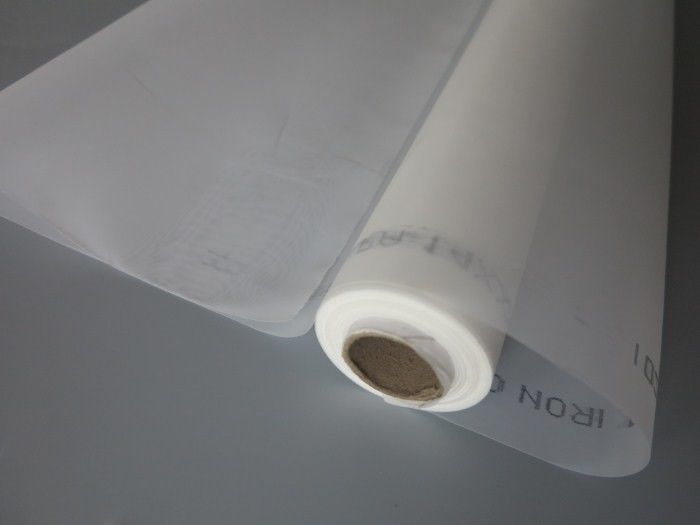

High Tension Screen Printing Fabric Mesh Low Elongation 1-3.65m Width

High Tension, Low Elongation, Polyester Printing Screen Mesh Advantages And Normal Specification Size

1) The main advantages of LEM are high tensile strength, uniform latitude and longitude elongation and high tension, and a high tension screen with a small amount of tension loss, which can increase the life of the printing screen, even at lower tension, LEM It also improves all aspects of performance than standard MP screens.

2) The LEM high tension is shown in Figure 4. In the figure, the 305T standard screen (MP) and LEM screen are compared at the same wire diameter and 6% elongation. When broken, the LEM can reach 35NCM. The standard (MP) screen is 24 NCM, and the LEM has a higher tension as shown.

3) As described above, under the action of a balanced external force, the LEM has an equal elongation in both the warp and weft directions, that is, when the fiber has an unequal elongation when stretched, the elongation in the warp direction will be This will cause an excessive increase in the latitudinal pressure, causing it to rupture.

4) The curve in Figure 5 shows that the maximum elongation is about 4% to 8% when pulling the net in both directions, and the elongation can be 28% to 36% in the single direction tensile test. LEM is on the warp and weft.

5) The elongation of 1 provides the stability of the screen height, has little screen fatigue in the screen version, and can print high-precision products or long-length printing for a long time.

Because LEM achieves higher tension than conventional screens, it allows for low web spacing (note: your tension design will determine the minimum and maximum mesh distance you can get), and a lower web spacing can be achieved:

1 fast printing (so Can increase productivity)

2 fewer data logging issues. 3 Improve the effective use area of the screen stencil (the printing area can be increased on the same size screen, because at the end of the squeegee pattern, due to the low mesh distance, the wiping pressure of the reticle is reduced).

The normal specifications of this High-Tencion and low elongation series printing screen mesh:

1) Mesh count 64T, Colour white and yellow, weaving ways PW, 55 diameter, 105um thickness

2) Mesh count 69T, Colour white and yellow, weaving ways PW, 55 diameter, 95um thickness

3) Mesh count 72T, Colour white and yellow, weaving ways PW, 55 diameter, 95um thickness

4) Mesh count 80T, Colour white and yellow, weaving ways PW, 55 diameter, 95um thickness

5) Mesh count 100T, Colour white and yellow, weaving ways PW, 40 diameter, 67um thickness

6) Mesh count 120T, Colour white and yellow, weaving ways PW, 34 diameter, 52um thickness

7) Mesh count 140T, Colour white and yellow, weaving ways PW, 30 diameter, 50um thickness

8) Mesh count 140T, Colour white and yellow, weaving ways PW, 31 diameter, 49um thickness

9) Mesh count 140T, Colour white and yellow, weaving ways PW, 34 diameter, 52um thickness

10)Mesh count 150T, Colour white and yellow, weaving ways PW, 31 diameter, 49um thickness

11)Mesh count 180T, Colour white and yellow, weaving ways PW, 27 diameter, 44um thickness
